Name: Sennebogen 683E Valid inspection, *Guarantee! 80tons, 42m Mai 2023 SENNEBOGEN - 683E - 85000
Brand: SENNEBOGEN
SKU: SEN-CRA-474736

Crawler Cranes

🇳🇱 Informatie in het Nederlands:

Resterend profiel voorbanden: 0
Resterend profiel achterbanden: 0
Contragewicht: 34300
Afmetingen (LxBxH) (m): 13.36x3.48x3.78
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

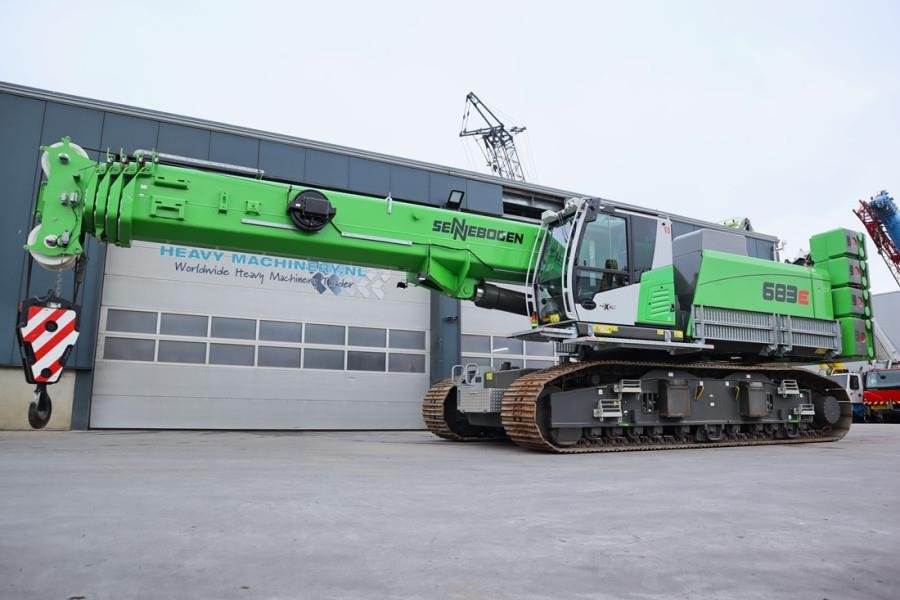

SENNEBOGEN 683E YEAR 2023
80t TELESCOPIC CRAWLER CRANE

This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

Manufacturer: Sennebogen
Typ: 683E
Building year: 2023
Serial nr: 683.5.507
Fuel: Diesel

Working Hours: 1.294 h

Loading / lifting capacity: 80.000 kg
Max boom lenght: 11 - 42 m
Boom sections: 5

Number of hook blocks: 2
50t - 3 sheaves - 10t - 1 sheave
Number of winches: 2

Travel speed: 0 - 2.8 km/h
Counterweights: 34.3T
Engine manuf. / typ: Cummins / B6.7 Stage V
Capacity in KW: 188
Capacity in HP: 252

- 2nd hoist: 72kN pulling force (maximum on first layer), Low-maintenance hydraulic winch for 20 mm hoisting wire, length 180 m with pocket lock
Runner with a capacity of 7.2 tons.

- 10-tons hook block, for 20 mm cable with single hook.
- Folding walkway, without handrail, on the side of the cabin.
- Folding walkway, without handrail, on both sides of the upper structure.
- Hydro-Clean filter, extra fine filter for hydraulic system. Necessary if biological hydraulic oil is used.
- Gear pinion lubrication for the turntable by means of grease pump, operable from the cabin.

- Automatic central grease lubrication for telescopic crane:
    Pivot point main boom
    Pivot point luffing cylinder
    Pivot point inside slewing ring

- Electrically powered diesel fuel pump, 50L/min. with automatic level cut-off.
- Radio with speakers, USB and Bluetooth function.
- Roof window cabin in bulletproof glass version.
- 2 LED work lights (24V / 50 Watt) mounted at the bottom of the base boom.
- Virtual Wall work limitation system – individually programmable. Limitation of swivel range, boom height and working radius.
- Testing and programming of 4 degree load table in LMB, for main boom, Runner and all track widths.
- Operating and maintenance manual.

All necessary documents and papers.
CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors



🇬🇧 Information in English:

Front tyres / undercarriage remaining: 0
Rear tyres remaining : 0
Tyre brand: -
Carrier engine: -
Counterweight: 34300
Transport dimensions (LxWxH): 13.36x3.48x3.78
Please contact PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group) for more information
