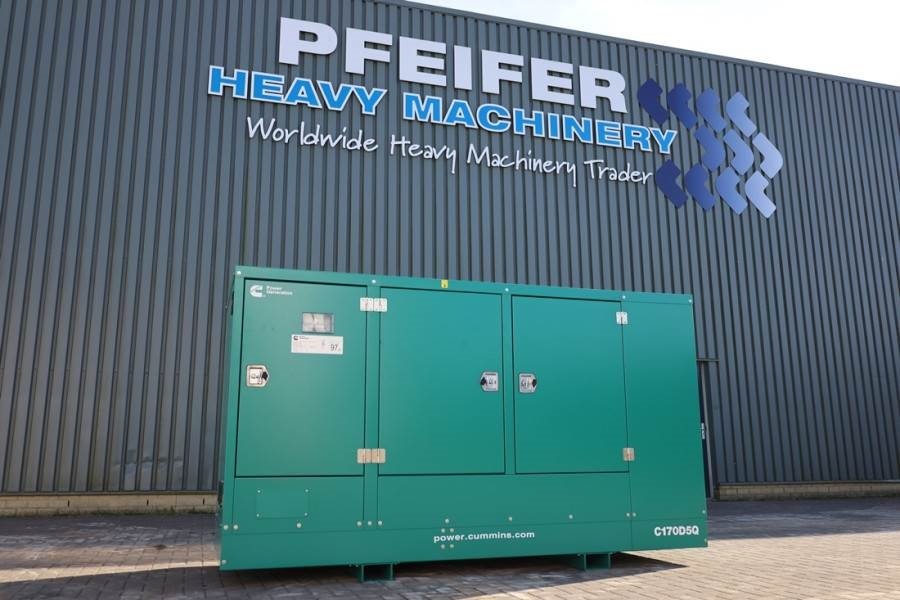

Name: Cummins C170D5Q Declaration of Conformity, Diesel, 170kVA, 2025 CUMMINS - C170D5Q - 63432
Brand: CUMMINS
SKU: CUM-GEN-474364
Price: 28607 usd
Availability: InStock

Generators

🇳🇱 Informatie in het Nederlands:

Brandstofsoort: Diesel
Generatorvermogen: 170 kVA
Afmetingen (LxBxH) (m): 3.1x1.18x1.95
Neem voor meer informatie contact op met PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group)

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.

For more information, feel free to contact us without any obligation.

Manufacturer: Cummins
Typ: C170D5Q
Manuf. Year: 2025
Serial nr: J24I439724
Fuel: Diesel

Engine
Model: Cummins 6BTAA5.9-G7
Design: 6-cycle, in-line, turbocharged, charged air-cooled
Displacement: 5.9 liters
Speed: 1500 RPM
Bore & Stroke: 102 mm × 120 mm
Cylinder Block: Cast iron, 6 cylinders
Fuel System: Bosch mechanical injection
Cooling System: 50°C ambient radiator with a coolant recovery system

Performance & Power Ratings
Emergency Standby Power (ESP): 170 kVA / 136 kW
Prime Power (PRP): 155 kVA / 124 kW
Voltage: 400/230 V
Frequency: 50 Hz
Voltage Regulation: ±1%
Frequency Regulation: Isochronous

Alternator
Manufacturer: Stamford
Model: UC274F
Design: Brushless, single bearing
Insulation Class: H
Excitation: Self-excited (Permanent Magnet Alternator available as an option)
Cooling: Direct drive centrifugal fan

Fuel Consumption
1/4 Load: 11 L/h
1/2 Load: 21 L/h
3/4 Load: 31.5 L/h
Full Load: 41 L/h
Fuel Tank Capacity: 400 liters
Autonomy at 75% PRP: 13 hours

Control System
Controller: PowerStart PS0600 (microprocessor-based)

Functions:
Auto/manual start/stop
Fault indication
Digital metering
Configurable for 50 Hz/60 Hz operation
Remote start capability
Low fuel level warning
Acoustic Performance (Enclosed Version)
Guaranteed Sound Power Level: 97 dB(A)

Battery System
Type: Lead-acid flooded/SLI technology
Voltage: 12 VDC
Capacity: 140 Ah
Charging Alternator: 55 A

Cooling & Exhaust
Coolant Capacity (with radiator): 22.1 liters
Cooling Airflow: 3.77 m³/sec
Exhaust Gas Flow: 32.46 m³/min
Exhaust Gas Temperature: 533°C

Dimensions & Weight
LxWxH: 3.100mm x 1.180mm x 1.950mm
Wet Weight (kg) 2.020

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.



🇬🇧 Information in English:

Type of fuel: Diesel
Generator capacity: 170 kVA
Transport dimensions (LxWxH): 3.1x1.18x1.95
Please contact PFEIFER GROUP (+31 544 463 114, +31622694752, sales@pfeifer.group) for more information
