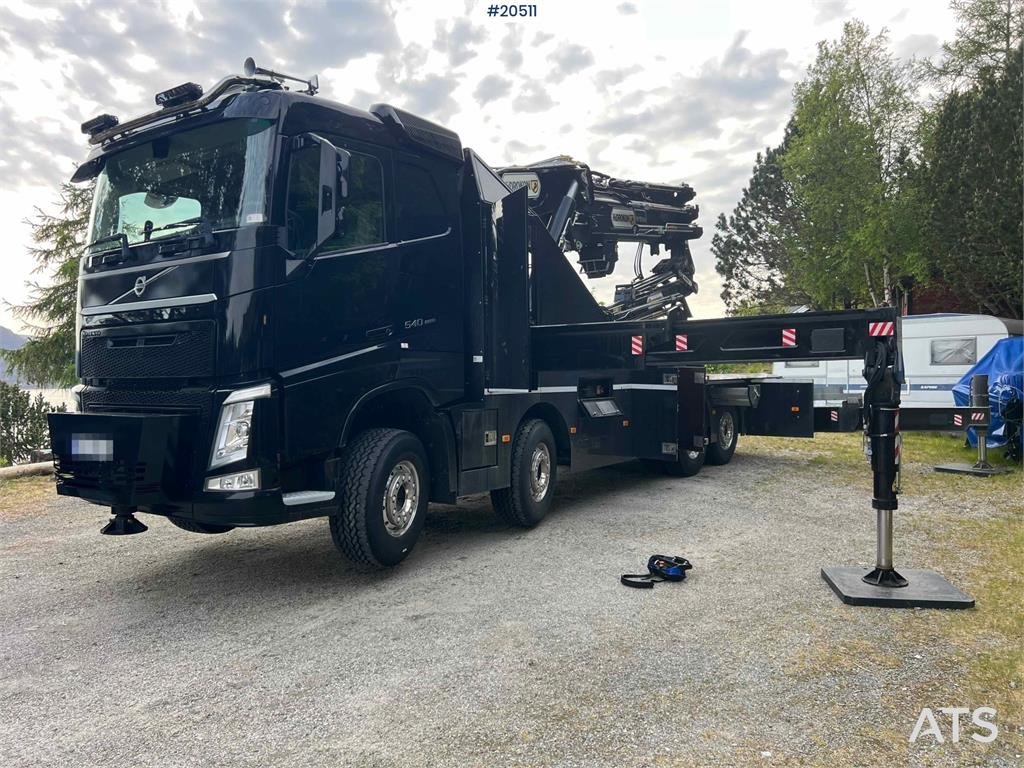

Volvo FH 540 8x2 Crane truck w/ 165 t/m HIDROKON crane w 2021 20511 - VOL-CRA-472219

Please contact ATS Norway (+47 401 26 000, [email protected]) for more information

Please provide reference number upon request: 20511

Specifications:

• 2021 model


• 7350 km (will go a little)


• 721 Engine hours


• 241 Crane hours


• Euro 6 engine


• 8x2


• 551 HP


• Suspension on 1st and 2nd axle: Steel


• Suspension on 3rd and 4th axle: air


• 2 x 110 liter variable pumps


• 2 x manual extensions for main boom and 2 x for jib


• Scanreco optical remote control (Top model)


• Weight cell main boom


• Additional function for main boom and jib


• Auto leveling (The car puts itself in a level position ready for lifting.)


• Virtual space (Possibility to limit all axes with a few keystrokes, no need to open a workshop for this. Brilliant when working under high voltage etc.)


• SKF central lubrication ring and up to the first link


• Extra function all the way up the jib


• Single winch hook (Jib / main boom)


• 2 shear winch hooks (Jib / main boom)


• 4-point winch hook (Main boom)


• Hook for jib


• Hook for main boom (Large hook)


• N d lower the generator (24 volts)


• Cable stop sensor and sleeve


• 4 ton winch


• Diagnostic cable for online help (Remote help)


• Danfoss valve center


• 2 x 2 ton counterweight (M is only used for cranes above the cabin, otherwise the counterweights are not needed, and these can be removed as needed)


• Front support leg



Structure:

• 4 x work lights strategically placed inside each outrigger cabinet.


• 50" LED bar work light at the rear of the cab


• Powerful LED lights in the crane.


• VBG mount, with air servo control unit mounted in rear cabinet left side.


• Roof rack


• 2 high beam LED bar on roof forward (daylight!!).


• Orange work warning LED beam on the roof.


• EasyUp foldable ladder with side railing.


• Boxes for chains, screws, etc. Mounted on the rear support legs so that they are extended together with the support legs and are also packed away while driving.


• Charger for control in cabin


• Plastic inner fenders axle 3 and 4.


• 3 edge pull-out cabinet between axles 3 and 4


• On the left side between axles 2 and 3, a large cupboard with a 500 W fan heater is installed for hanging clothes to dry, etc.


• Flat / bottom rear closed with alloxed aluminum door panels that are cut to fit the car perfectly, with rounded edges for a very professional look.


• CNC manufactured plates up the back of the cabin.


• Fully painted sides, cabin and stern.


• Crane rest cradle for operation without jib.


• 5 pcs support leg plates. 4 pcs 80x80x6 cm. placed in dedicated cribs at the back of the "plan"


• Right side large cabinet 1.2 x 1 meter


• Powerful LED reversing/rear work lights.


• The rear of the car was rebuilt with CNC manufactured plates, and beautiful LED taillights have been installed in several stages.


• Hatches strategically placed for access to relevant facilities under the building.


• Precisely cut out panels in side coverage for access to screen, manual controls, emergency functions, etc.


• Marker lights along the side mounted so that they flash together with the turn signals/direction indicators


• Cradle for holding the jib when not in use.


• Hydraulic extra function dismantled main boom and jib, but can be installed if desired.


• Kettle in cabin


• Microwave oven in cabin


• Light


• Air conditioning/ac


• Ready for delivery

Description:

We have a 2021 Volvo FH 540 8x2 Crane Truck w/ 2021 165 t/m HIDROKON crane w/ jib and winch and lots of equipment for sale.
The car looks like new and has hardly been used. All services have been done at a reputable workshop.
There are 8 hydraulic extensions on the main boom and 6 hydraulic extensions on the jib.
Everything works as it should, according to the owner.
BR SEE!
Ready for delivery

Km: 5874
HK: 550
Technical approved: Yes
EU-approved until: 21.02.2026
Own weight: 30600
Total Weight: 37000
Crane: Year controlled until: 6325
Width: 259
Length: 1103
Euro: 6
Model: FH 540 8x2 Kranbil m/ 2021 165 t/m HIDROKON kran m/ jibb og vinsj og enn masse utstyr! SE VIDEO
