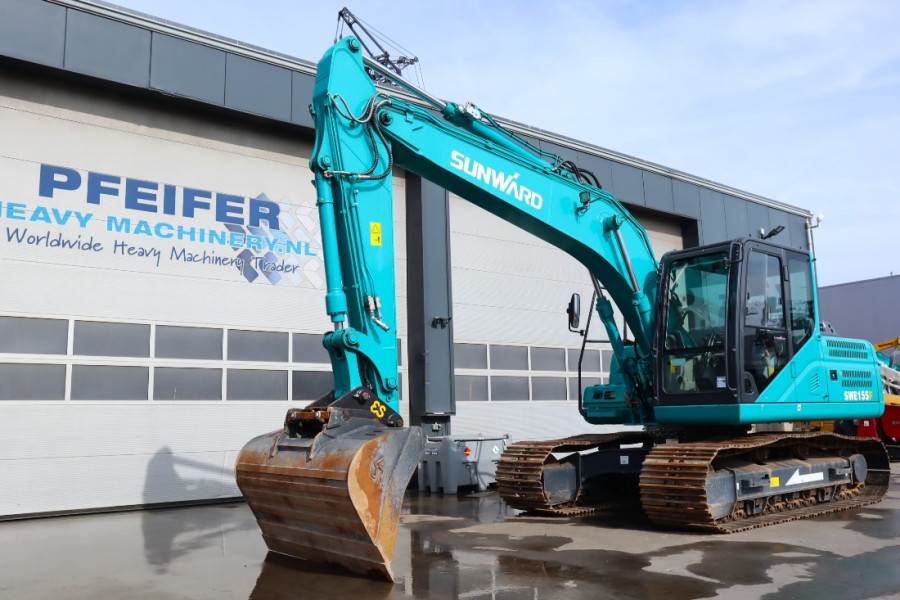

Sunward SWE155F CE certification, Diesel, Digging depth: 5 -

🇳🇱 Informatie in het Nederlands:

Brandstofsoort: Diesel
Afmetingen (LxBxH) (m): 7.83x2.6x2.83
Neem voor meer informatie contact op met Pfeifer Rentals & Sales B.V. (+31 544 463 114, +31622694752, [email protected])

CE (Declaration of Conformity).

Manufacturer: Sunward
Typ: SWE155F
Manuf. year: 2022
Fuel: Diesel
Serial nr: SWE155F00151
Working Hours: 529 h

WORKING RANGE:
Max. digging depth: 5.525 mm
Max. digging reach: 8.370 mm
Max. bucket digging force: 100 kN
Max. arm digging force: 76 kN

HYDRAULIC SYSTEM:
Type: 2 Piston Pumps
Auxiliary Flow: 2×126,4 L/min
Hydraulic pressure: 31,4/34,3 Mpa

ENGINE:
Model: Cummins QSF3 8
Emission rating: UE Stage V
Displacement: 3,8 L
Rated power output: 93 kW - 121 HP

DIMENSIONS:
Operating weight: 15.600 kg
Standard bucket capacity: 0,61 m³
Shipping length: 7.825 mm
Shipping width: 2.600 mm
Height over cabin: 2.825 mm

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors



🇬🇧 Information in English:

Type of fuel: Diesel
Transport dimensions (LxWxH): 7.83x2.6x2.83
Please contact Pfeifer Rentals & Sales B.V. (+31 544 463 114, +31622694752, [email protected]) for more information
